Cryogenic tank Return

The application of information

Welding system

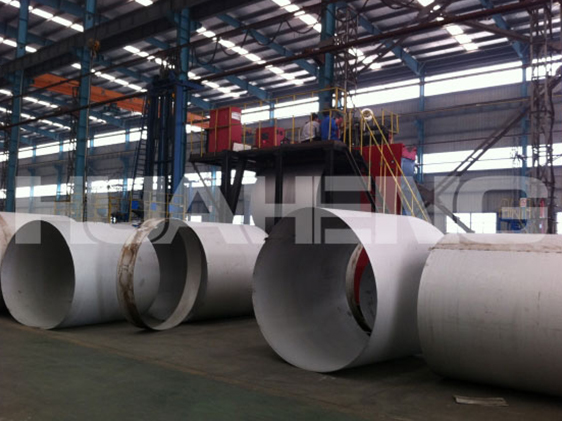

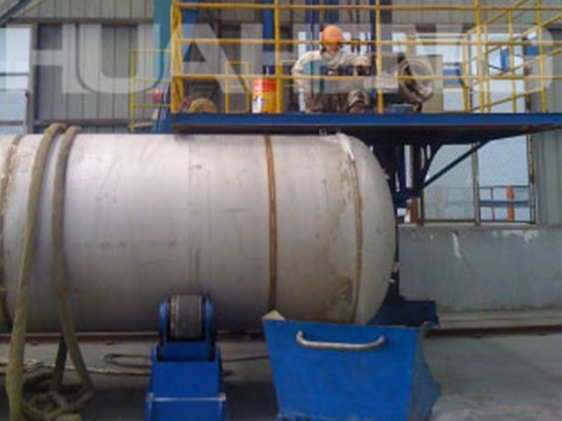

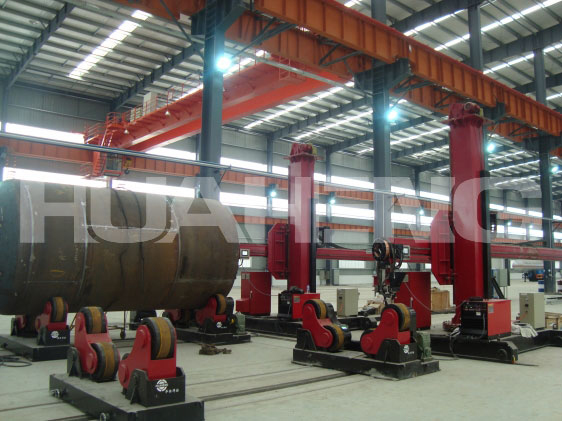

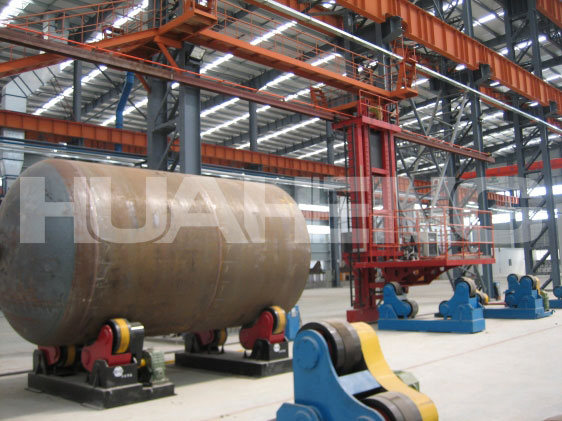

Cryogenic tank longitudinal ring seam

The welding way

PAW、P+T

The workpiece material

Stainless steel 304/316

Diameter range

¢1600~3000mm

The thickness of the material

2.5~12mm

Application industry

Cryogenic storage tanks, etc


System Features:


Longitudinal seam tooling and ring seam tooling are specially designed for low temperature industry, easy to operate, high production efficiency and welding quality;

Low temperature storage tank adopts plasma or P+T welding process, strong penetration, 3 ~ 8mm, no need to open groove, can realize single-side welding double-side forming, greatly reduce the preparation time before welding; The welding speed is fast, the plasma welding reduces the time 4-5 times than the manual argon arc welding, and the post-welding deformation is small;

Huaheng Company patented I-control Control platform, Siemens PLC, powerful, stable Control;

The system parameter setting is operated by touch screen, and the man-machine dialogue interface in Chinese is fast, convenient and easy to understand.

Huaheng has provided more than 20 sets of equipment for domestic cryogenic storage tanks for many customers, and 56 sets of equipment for cryogenic gas cylinders are in use for 16 customers, so it has rich experience in industrial application.

Products through many years of improvement, has been upgraded, is now very mature;

This system belongs to turnkey project;
