Positioner Series

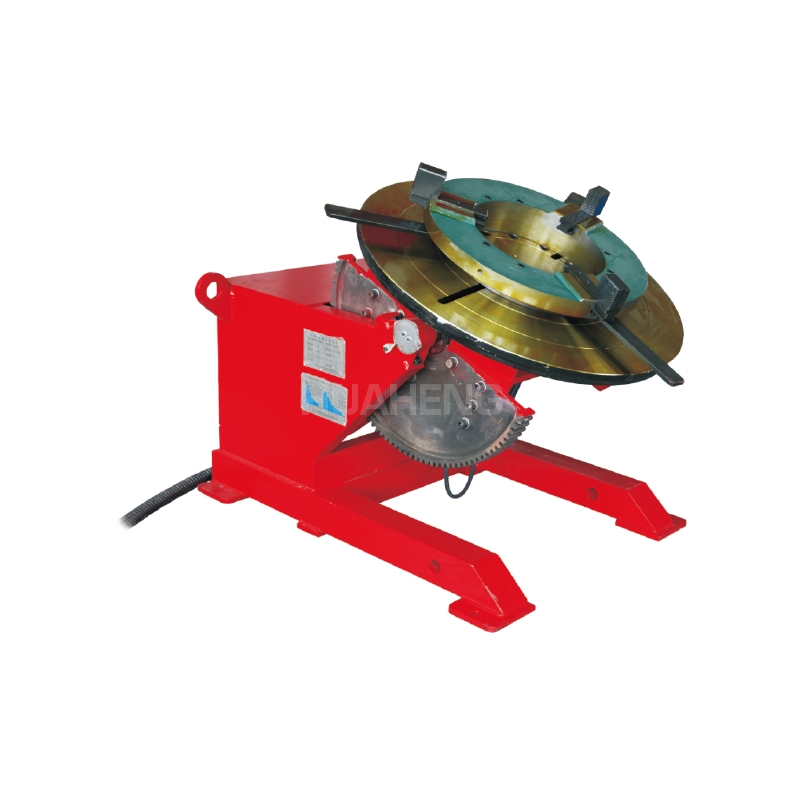

Positioner series
  • Hotline: +86 (0)512-57328118

  • Mailbox:sales@huahengweld.com

  • Description

        The positioner series tooling can be used for various automatic welding or manual welding to realize pipe butt joint, pipe end face welding and various welding forms such as shafts, discs, and cylinders. It has compact structure, beautiful appearance and light weight. Convenient operation and other advantages, it is an ideal welding auxiliary equipment for pressure vessels, metallurgy, electric power, chemical machinery, metal structures and other industries.

    Performance

    Welded structural parts such as bases can effectively remove welding stress and prevent deformation during effective processing;

    There are 4 or more T-slots on the work surface to facilitate connection with various fixtures such as chucks;

    Equipped with a spring-loaded conductive device, the contact is reliable, and the welding ground wire is connected to the equipment, which effectively avoids the entanglement of the welding cable.

    The rotary drive of the worktable is: AC motor (AC servo motor) → reducer → gear drive → worktable rotation;

    The electric overturning drive of the worktable is: electromagnetic brake motor → double-stage worm gear reducer → gear drive → worktable overturning;

    The whole turning mechanism has a strong self-locking ability, the workpiece can be stably self-locking at any position, and is equipped with double limit switches to ensure that it will not be offside during turning work;



    Technical parameter
           Model

    HB250

    HB500

    HB1000

    HB2000

    HB3000

    HB20000

    Maximum carrying weight(kg)

    250

    500

    1000

    2000

    3000

    20000

    Flip speed(rpm)

    0.75

    0.6

    0.33

    0.33

    0.65

    0.23

    Flip angle range(°)

    Manual 0-120

    Electric 0-135

    Electric 0-120

    Electric 0-120

    Electric 0-120

    Electric 0-90

    Swing speed(rpm)

    0.3-5.0

    0.13-1.3

    0.12-1.2

    0.1-1.0

    0.05-0.5

    0.005-0.25

    Rotary table diameter(mm)

    Φ500

    Φ800

    Φ900

    Φ1100

    Φ1200

    Φ3000

    Maximum eccentric distance(mm)

    50

    150

    150

    150

    200

    200

    Maximum center of gravity(mm)

    150

    200

    350

    300

    300

    500
