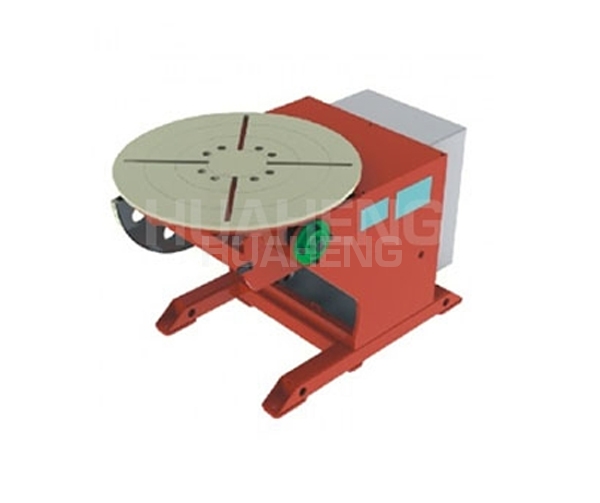

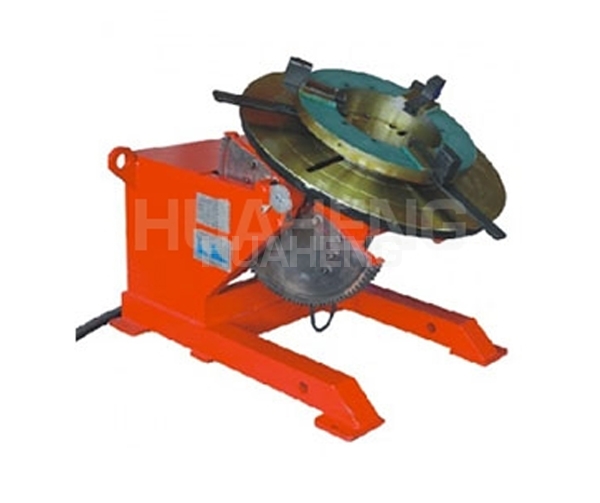

The tilting pipe positioner is mainly used for simple welding/cutting of pipe-pipe, straight pipe-flange, straight pipe-elbow and other forms of pipe fittings. Its structure is compact and the operation is simple. Widely used in marine engineering, shipyard, petrochemical, pressure vessel, metallurgy, electric power, metal structure and other industries.
Model | FB500 | FB1000 | FB3000 | FB5000 | FB10000 |
carrying capacity | 500 | 1000 | 3000 | 5000 | 10000 |
Rotation speed[rpm) | 0.6 | 1 | 0.2 | 0.2 | 0.2 |
Swing speed regulation mode | AC variable frequency speed regulation/servo speed regulation | ||||
Flip angle(°) | Electric 0-135 | Electric 0-135 | Electric-130 | Electric-130 | Electric-130 |
Workbench diameter(mm) | Φ800 | Φ900 | Φ1300 | Φ1600 | Φ1800 |
Maximum eccentricity(mm) | 150 | 150 | 200 | 200 | 200 |
Maximum center of gravity distance(mm) | 200 | 200 | 300 | 300 | 400 |
Swing motor power(kw) | 0.37 | 0.75 | 1.5 | 2.2 | 3 |
Turning motor power(kw) | 0.37 | 0.75 | 1.5 | 2.2 | 4 |
