Description

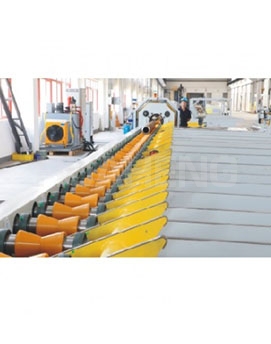

It can be used with the discharge end of the sawing machine or beveling machine, which can realize the automatic unloading of the pipe, reduce labor intensity and reduce the number of workers.
Reduce travel time;
Use with production line integration;
Conveying is stable, using PLC centralized control;
Easy to operate, touch screen fool-like setting operation.
Technical parameter
Model | PUC-14 | PUC-24 |
Suitable for pipe diameter range | 2"～14" | 8"～24" |
Carrying tube weight | 3000KG | 7000KG |
Carrying tube weight | Electric or manual | Electric or manual |
Transfer speed | ≤15000mm/min(motorized) | ≤15000mm/min(motorized) |
Delivery method | Roller conveyor | Roller conveyor |
Shortest delivery pipe | 1000mm or customized as required | 1000mm or customized as required |
