The application of information
Welding system | Gate surfacing system, inner wall surfacing system |
The welding way | MAG、TIG、PAW、SAW |
Suitable workpiece material | Carbon steel, nickel base alloy, stainless steel |
Workpiece diameter | ￠50-3000mm |
The thickness of the material | 5mm-100mm |
Application industry | The valve industry |
System Features:

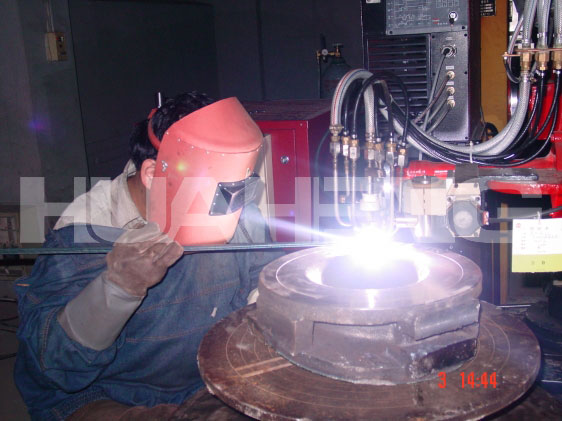

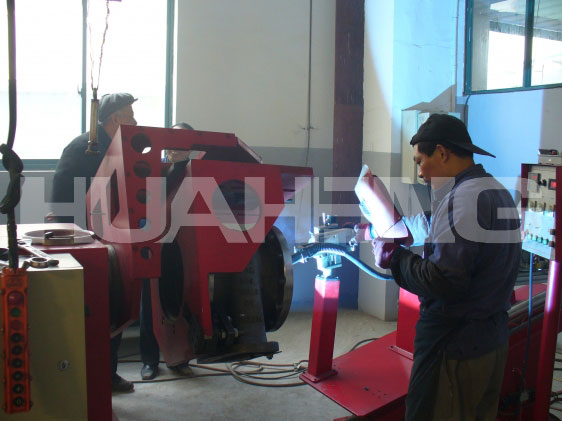

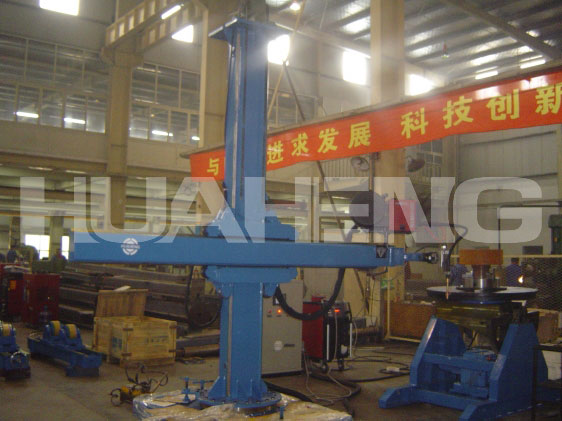

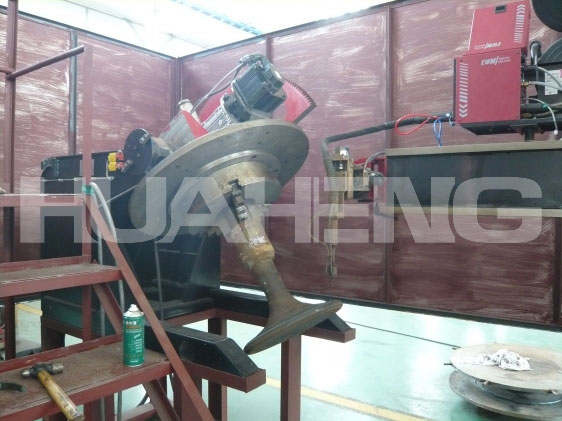

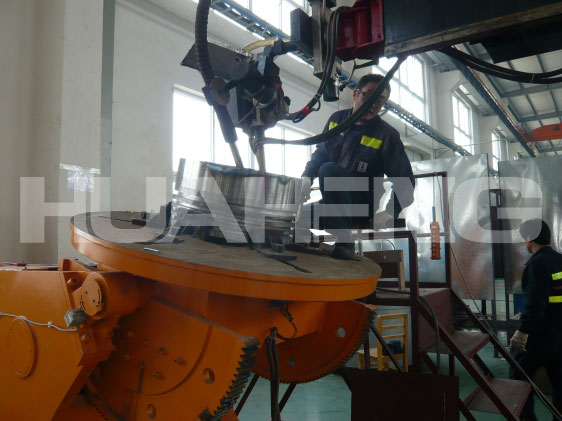

The system is specially designed for the valve surfacing. MAG, TIG, PAW, SAW can be selected according to the process requirements. Step type or spiral type can be selected according to the surfacing mode.
According to the different valve structure using different tooling design and welding process, in order to achieve high efficiency and high quality welding;
The executive components use brand stepping or AC servo motor, accurate operation;
TIG and plasma have arc length control technology and yaw technology, according to the need can also be configured with tracking and monitoring system;
Control system adopts stable and reliable PLC control technology, programmable control welding parameters, parameter setting by touch, easy to operate, simple and practical, PLC selected Siemens S7-200, the system is stable and reliable;
The system is a turnkey project.
