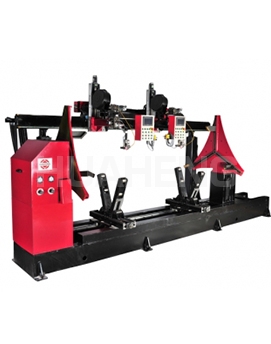

The ring seam equipment is designed and manufactured according to user requirements. Mainly used for circumferential seam welding of cylinders, with a length of 2500mm. It is mainly composed of rotary head frame, tailstock, hydraulic pump station, beam, feeding pneumatic bracket, welding trolley, electric carriage, arc protection cover, control box and so on. During welding, one end of the workpiece is clamped by a three-jaw adjustable chuck on the spindle with a clamping range of Ф300～Ф1000mm, and the outer circle of the workpiece can be concentric with the spindle according to the scale on the gripping plate. The other end is tightened by the centering device on the hydraulic tailstock, and can be supported by a liftable pneumatic bracket in the middle of the workpiece as required.

   It can be applied to the welding of carbon steel, stainless steel, titanium alloy, aluminum alloy and other materials;

   It is suitable for the structural forms of ring seam butt joint and corner joint of various types of workpieces;

   Suitable for TIG, MIG/MAG, PAW and other welding processes;

   Modular design, which can be quickly and easily combined into the required welding system according to customer requirements;

   Adopt a stable industrial control platform to ensure long-term stable operation of the welding system;
