The application of information

System Features:

Using plasma welding process can obtain a one-time continuous and stable weld quality, and plasma for titanium, zirconium and its alloy, 3-10mm without opening groove, single-side welding double-side molding, can greatly reduce the preparation time before welding, reduce costs, improve production efficiency.

For titanium alloy, zirconium alloy and other alloys, the main problem of welding is to choose the appropriate line energy and welding area protection, so the use of reasonable, efficient welding tooling and welding process is very necessary.

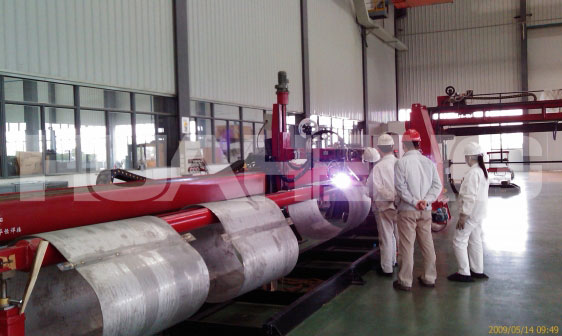

For longitudinal seam, we adopted the special keys type welding assembly (P + T) welding process, the keys type tooling to ensure reliable clamping workpieces, heat dissipation and protection, welded to ensure consistency, (P + T) process is a plasma welding and argon arc welding at the same time, plasma before, and can quickly the parent metal of fusion welding area, TIG and silk in the back, It can not only fill metal, but also get beautiful weld surface. Therefore, P+T process can not only improve the welding speed, 30% higher than the single gun, but also get more ideal weld front and back molding.

In view of the ring joint need special ring joint front and back protection cover, so as to ensure the welding quality of titanium, zirconium alloy and weld protection effect;

There are AVC (arc length tracking technology) and ion gas attenuation module in circular seam welding, so as to ensure the quality of welding process and hole quality;

Welding controller control stability, high precision, stable welding process;

Huaheng has 15 years of experience in design, manufacture and application of special welding automation equipment.

The system is a turnkey project.
