The application of information

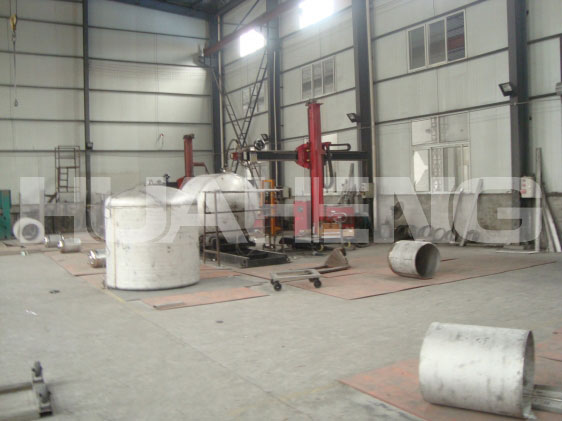

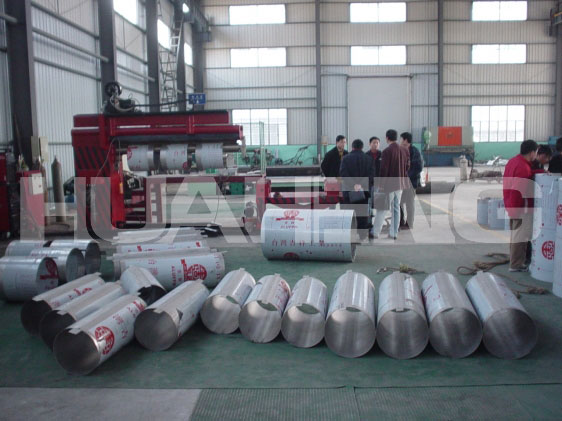

Welding system Precision TIG, plasma or P+T longitudinal ring seam welding system;

Welding method TIG/PAW/P+T;

Workpiece material stainless steel;

Workpiece diameter ≤￠3200mm;

Workpiece length ≤6500mm;

Weld seam form longitudinal seam, butt ring seam, joint ring seam.

System Features:

This system is specially designed for the stainless steel industry automation welding system, high-energy beam plasma welding process method, has a good hole penetration ability, in the guarantee of single-side welding double-side forming at the same time, as far as possible to improve the welding speed, so as to improve the welding efficiency;

The use of plasma +TIG composite welding, plasma substrate, TIG cover, can more effectively improve the quality and efficiency of weld, TIG welding free arc has good coverage ability, and then with the right amount of filling metal, to achieve the front molding beautiful effect, is a single gun welding efficiency of 1.3-1.5 times;

Mainly for the welding of thin-walled containers, stainless steel thickness below 8mm without opening groove, can realize single-side welding double-side molding, more than 8mm opening groove left blunt edge;

Strong penetration ability, no beveling for plate thickness below 8mm, greatly reducing the preparation time before welding;

Arc energy concentration, welding heat affected zone is small, welding deformation is small;

The welding speed is fast, and the plasma welding reduces 4-5 times the time compared with manual argon arc welding.

The stable industrial control platform is adopted to ensure the stable operation of welding system for a long time.

Building blocks modular design, reduce system design and production cycle, conducive to large-scale production or maintenance;

Huaheng has more than ten years of experience in plasma application, professional training materials, and perfect process guidance and service ability;

The system is a turnkey project.
